Blues tuning for 10-hole harp--now with DIAGRAM

Post by IaNerd » Thu Aug 10, 2017 8:22 pm

NAME: I call this "Byrnes 10-Hole Blues" tuning.

BASIC CONCEPT: Rethink Richter-Diatonic, to make blues more playable with without the use of so many partial draw bends, overblows, etc.

WHEN/HOW: June of 2017, through Seydel's Configurator. This was a Noble Classic Low, as the first note is C3.

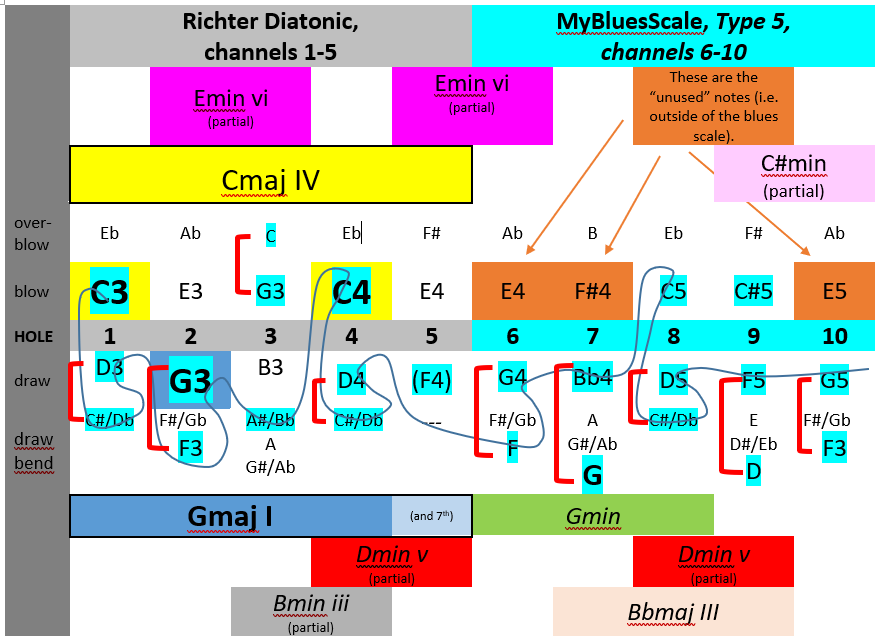

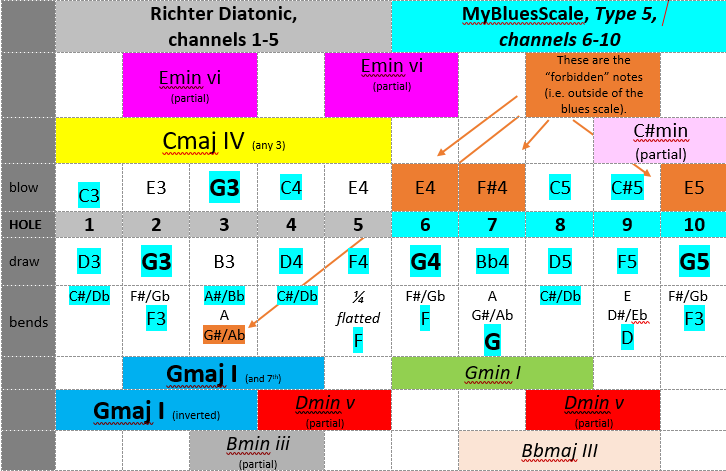

LAYOUT:



Notes of the Minor Hexatonic Blues Scale in G: G — A#/Bb — C — C#/Db — D — F — G.

Chords in this setup:

I Gmaj yes (x2), one with 7th
ii Amin no
iii Bmin yes, partial
IV Cmaj yes (x3)
V Dmaj no
vi Emin no
vii F#dim no
--------------------------------
Also: Gmin, Bbmaj, C#min (partial), Dmin (partial, x2)


DETAILS:

The first five channels are Standard Richter. For the life if me, I could not find any way to make that any "better".

Channels 6-10 represent a new thinking, whereby all of the Minor Hexatonic Blues Scale notes (see above) are accessible as unbent blows and draws. The blow notes in channels 6, 7 and 10 were chosen not to BE PLAYED, but rather to make the DRAW-BENDS of those channels complement the unbent blues scale notes. Note that in the high half of the harp there are a number of enharmonic relationships between bend and unbent notes of the blues scale.

As a variation on this theme, the top five channels of this setup can be dropped into channels 1-5 or 2-6 of a six-hole harp (e.g. Big Six).

I am too shy to post my own sound or video. However, if someone with more chops than me (= pretty much everybody) wants to give it a try, pm me.
Attachments
2017-08-11 (2).png
2017-08-11 (2).png (47.55 KiB) Viewed 214 times
