Anything apart from the two mainstream default harmonicas (Solo-tuned fully-valved chromatic, and un-valved Richter 10-hole diatonic). Alternate tunings, different construction, new functionality, interesting old designs, wishful-thinking... whatever!

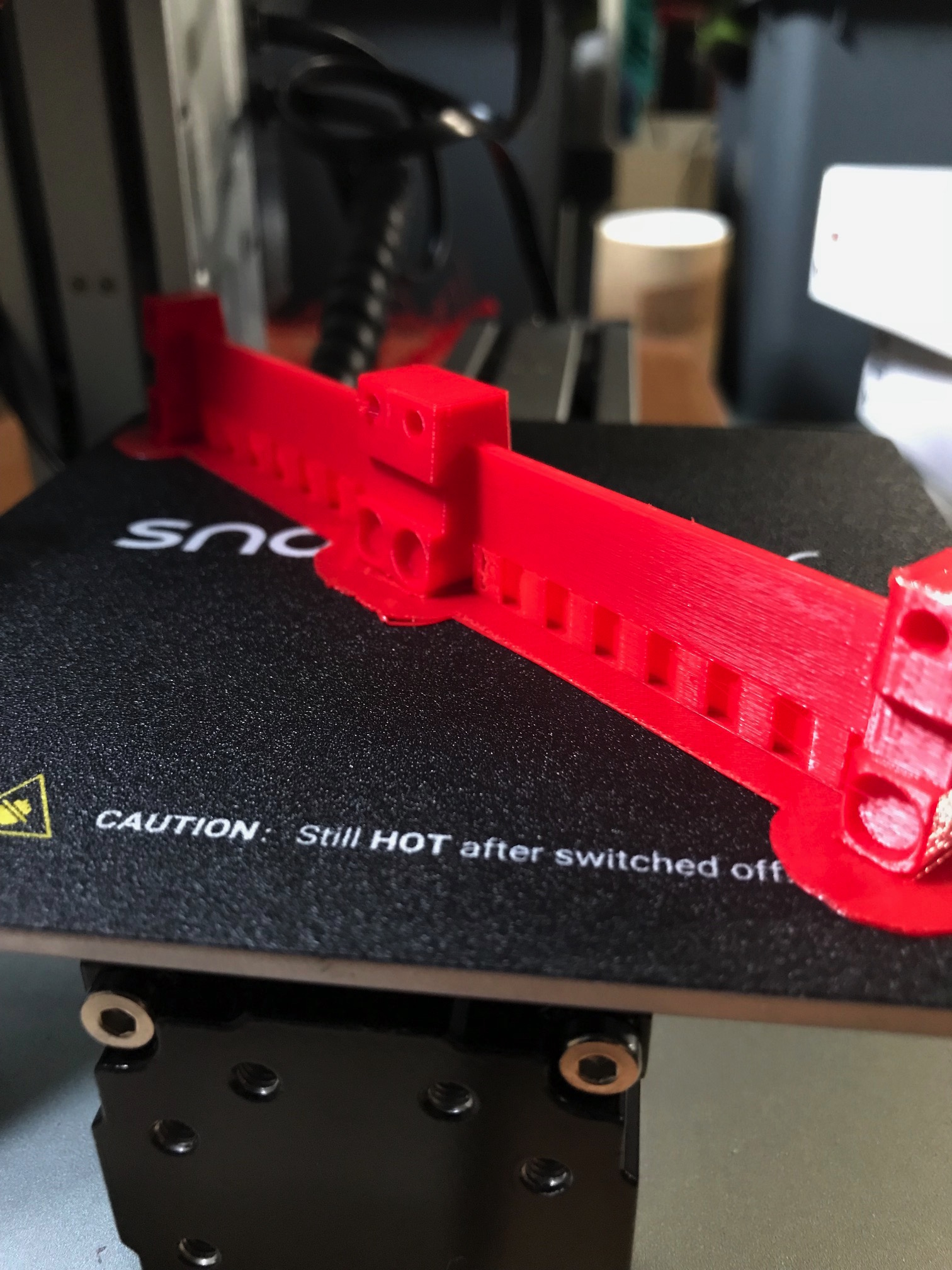

I finally got a 3d printer and was able to put this together.

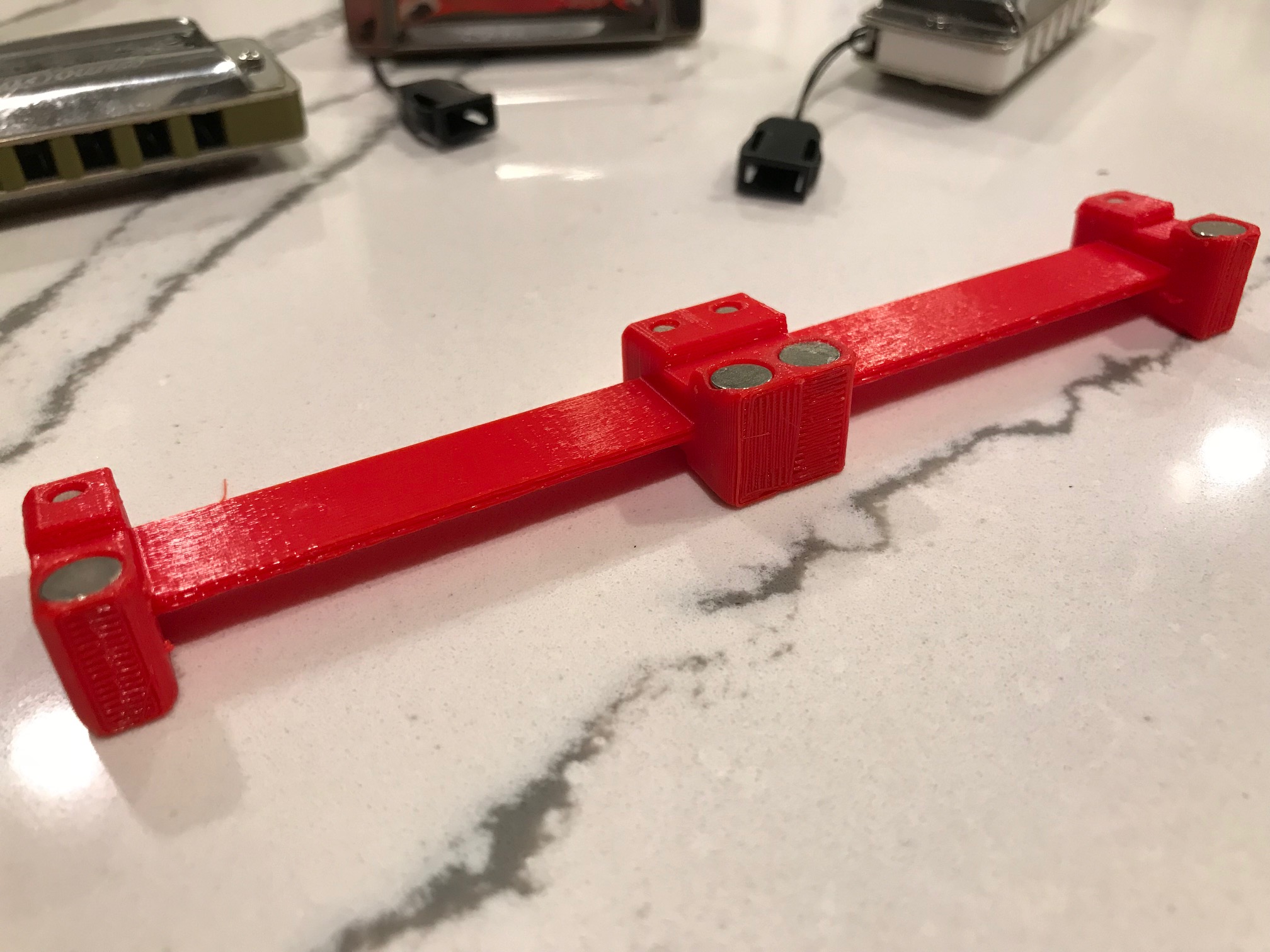

Without the harmonicas

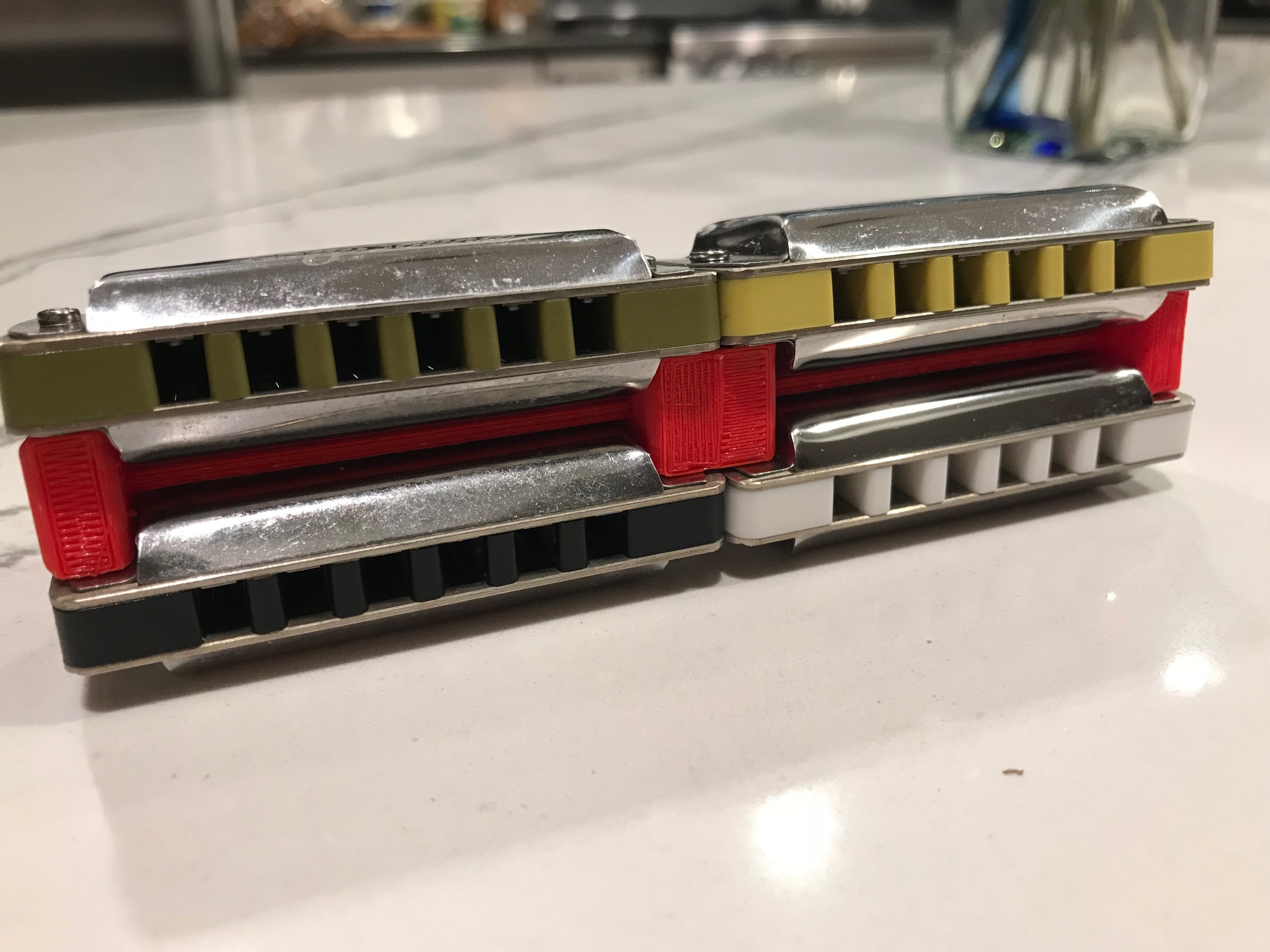

I have three big sixes in my BE GooD tuning so with those in place you have power chords in half the circle of fifths.
F,C,G,D,A,E
I put a regular big six in whatever key I want to play Richter on for a given song so I can solo in whatever position makes the most sense for the song.
The first version I made like this was just with two stock Big Six harmonicas and wedges.
A folk big six is holes 4-9 richter in C so gives you C and Dm chords.
If you combine that with a standard Bb harp, (F and Bb chords)
Then you get the I IV V vi in F.
Nice one, Alan! I like the simple design and use of magnets for quick changes - they are wonderful things With a design like that I assume you must have printed with supports?
I tried for a while to come up with a spiral tuning to allow me to play lots of chords. There are many different options on paper, but I found when I built one and tried it out I didn't like the way it sounded. To my ear, a harmonica chord sounds best when at least one note is repeated as an octave. Song chord progressions sound jarring to me when you jump too far up or down a scale which was a problem with some spiral tunings.
A power chord is a term I've heard used by guitar players with the idea being you just play a 1 and 5 of a given chord and it will sound fine with essentially any version of a chord. C and G together sound good when the band is playing Cmaj, Cmin, C6, C7 etc.
So I came up with a 4 note series on a big six with the first one I made being BE draw and GD blow which was the inspiration for the name BE GooD.
It lets me play chord accompaniament and do simple solos.
The C version is CG and EA.
This gives you a C power chord, an A power chord.
In C you get 1,3,5,6 which means the major pentatonic scale requires one bend.
In A you get 1, b3, 5,b7 so you get the minor pentatonic scale and the option for the blues scale.
With one in F(D), C(A), G(E) I have half the circle of fifths covered which allows me to play any song that comes up in the local bluegrass jam. (I think they're allergic to accidentals)
I then have a fourth slot open to put in a standard big six if I want to play richter tuning for a solo for any reason.
One interesting thing I learned along the way is that many harmonicas use nonferrous cover plates so magnets won't help them stay in place.
Assuming you stick with the pairs of power chords I put together you start one chord on the 1 and the other on the 5. So there are two options:
1 2 3 4 5 6
C G C G C G - blow
E A E A E A - draw
or
1 2 3 4 5 6
G C G C G C - blow
A E A E A E - draw
I prefer lower notes so I've chosen the lowest possible stock starting note for blow 1. In the seydel configurator that is G3 or higher, so I have some that start on the 1 and some that start on the 5 in the first blow slot.
With a design like that I assume you must have printed with supports?
